Network interface design, can provide wired network for other equipment.
The antenna can be rotated freely, and the receiving ability of multiple antennas is good.
Plug in SIM card, transmit WiFi signal, easy to have network.
Say goodbye to the trouble of no net available, plug in the card and have net anytime and anywhere.

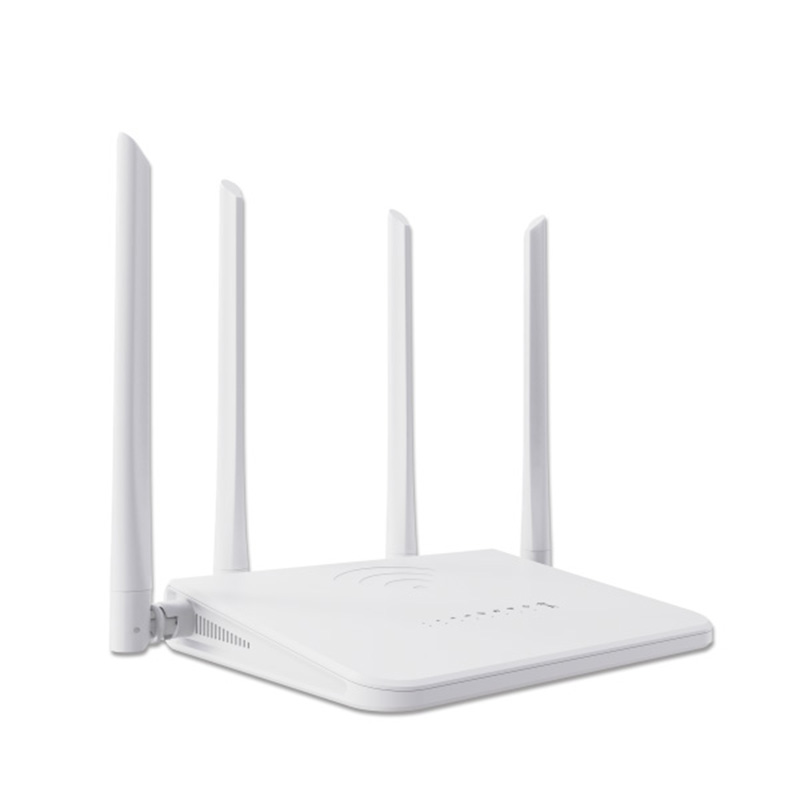

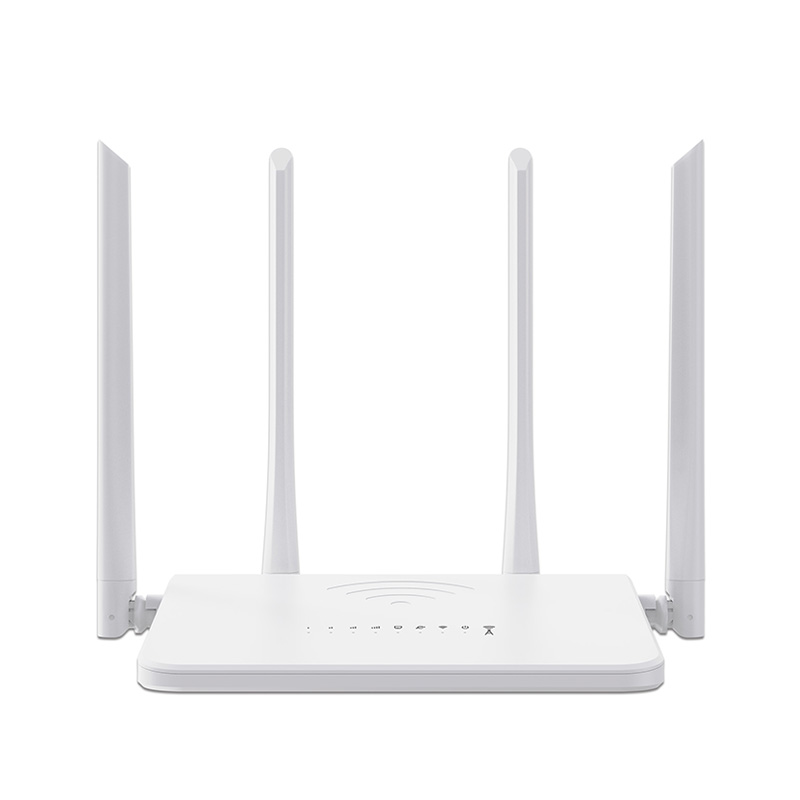

PE-MR201-4G This device is a high-performance 4G broadband wireless router, supporting the maximum DL / UL rate of 150 / 50Mbps. it provides high-quality data communication and optimized WiFi data transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.
With a variety of working modes (4G to WiFi / 4G to cable), rich network protocols and reliable connections, it can be widely used in business and home. It has the function of regular restart and firewall protection.
| Chipset | ASR1803 | Software | |
| Memory | 64Mb Norflash SDR 256Mbit | Standard WEB UI | |
| LTE TDD/FDD | 3GPP R9 Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | Quick Setup | support |
| WCDMA | 3GPP R7 Downlink/Uplink up to 21Mbps/5.76Mbps | Dashboard（Device Status） | support |
| EU | LTE 1 / 3 / 7 / 8 / 20 / 38 / 40 / 41 WCDMA 1/ 8 | Internet Settings | support |
| NA | LTE 2 / 4 / 5 / 7 /28 /38/ 40/ 41 /66 WCDMA 2 /4 /5 | Home Network Settings | support |
| CN | LTE 1 /3/ 5 /8 /34 /38 /39 /40 /41 WCDMA 1 /5 /8 | Wireless Settings | support |
| IEEE 802.11AX | Support | Router Settings | support |
| IEEE 802.11n | Support | System Settings | support |
| IEEE 802.11g | Support | SMS | support |
| IEEE 802.11b | Support | Firmware upgrade | support |
| 2.4G | 1~13 channel | Operation System | WIN7(32bit/64bit)、WIN8,WIN10,Mac OS X10.6 and above version |
| 4G Antenna connector | LTE Main1/Diversity antenna1 | Working Temperature | 0~45℃ |
| SIM card slot | 2FF SIM card | Storage Temperature | -20~70℃ |
| Power interface | Standard USB Type C | ||
| RJ45 | 100M | ||
| Reset button | Support | ||
| LED indicator | Power/WIFI/Internet/LAN/Signal x 4 | ||
| USB input | 5V/2A |
